Product information
TSNA6030SM-NC3
CNC Slicing Machine

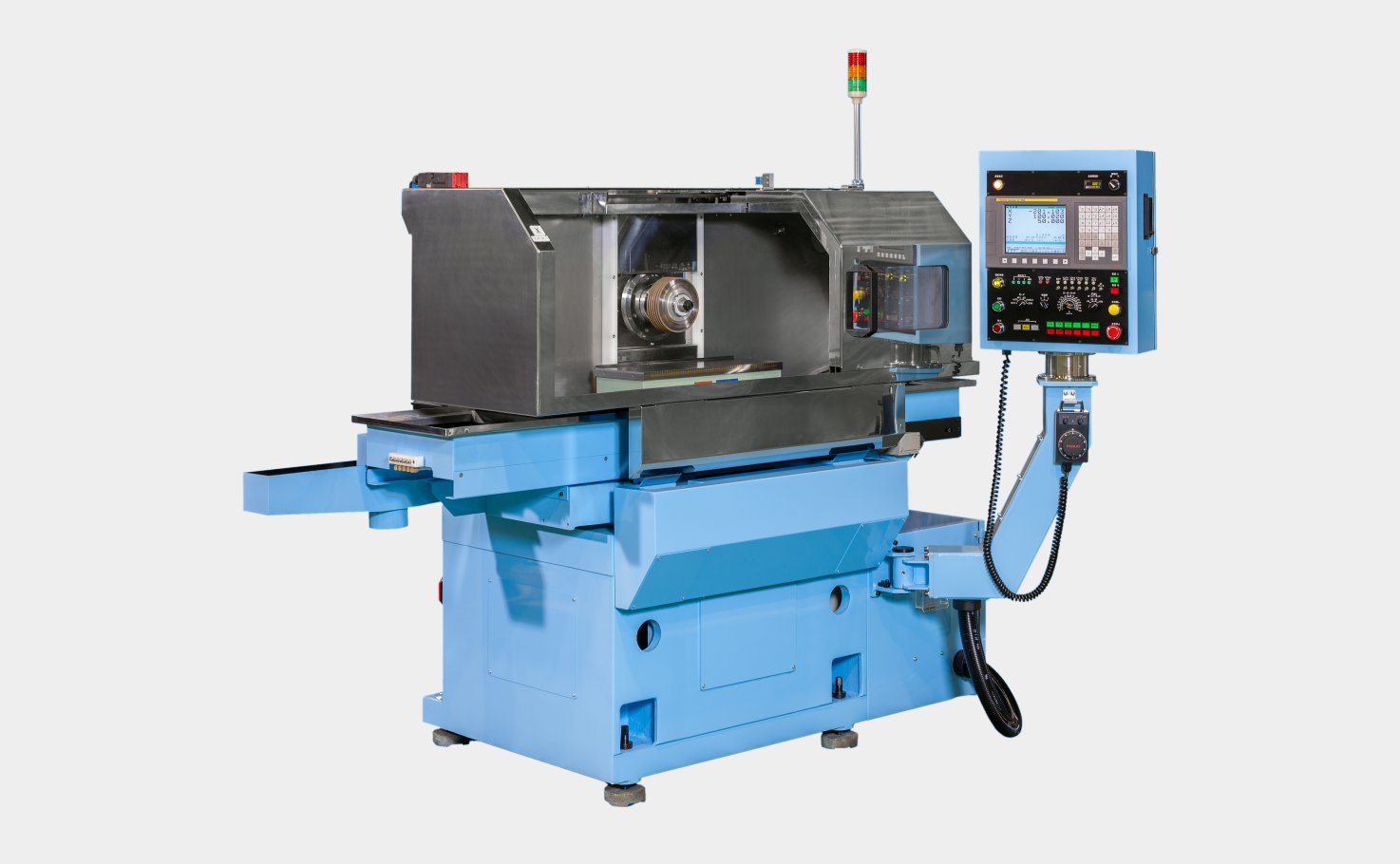

*This image is [TSNA5020 SMNC3].
Best-selling machine of TSKK. It utilizes diamond wheel to cut and groove, with high precision, special materials and those hard to grind including glass, ferrite, ceramics, cemented carbide and neodymium.
Specification
| Size of the chuck upper surface (length×width) | mm | 600×300 |
| Table stroke (left to right×front to back) | mm | 620×300 |
| Distance from wheel axis to the table upper surface | mm | 320 |
| Distance of manually moving wheel axis vertically (handle) | mm | 150 |
| Size of wheel (O.D.×I.D.) | mm |  125～175×40 |
| Feeding amount :left to right, front to back(Minimum setting unit) | mm | 0.001 (×1×10×100) |
| Speed of feeding the table left and right | mm/min | 1～1000 |
| Speed of rapidly feeding the table left and right | mm/min | 3000 |
| Speed of feeding :front to back | mm/min | 1～2000 |
| Speed of rapidly feeding :front to back | mm/min | 2000 |
| Speed of feeding :up and down | mm/min | 1～2000 |
| Speed of rapidly feeding :up and down | mm/min | 2000 |
| Revolving speed of wheel axis | mm-1 | 1000～6000 MAX7000 |
| Motor power for wheel axis; Max. power in parentheses | kw | 11(15) |
| Mass of the basic unit | kg | About 2,000 |
