Product information
TSA550

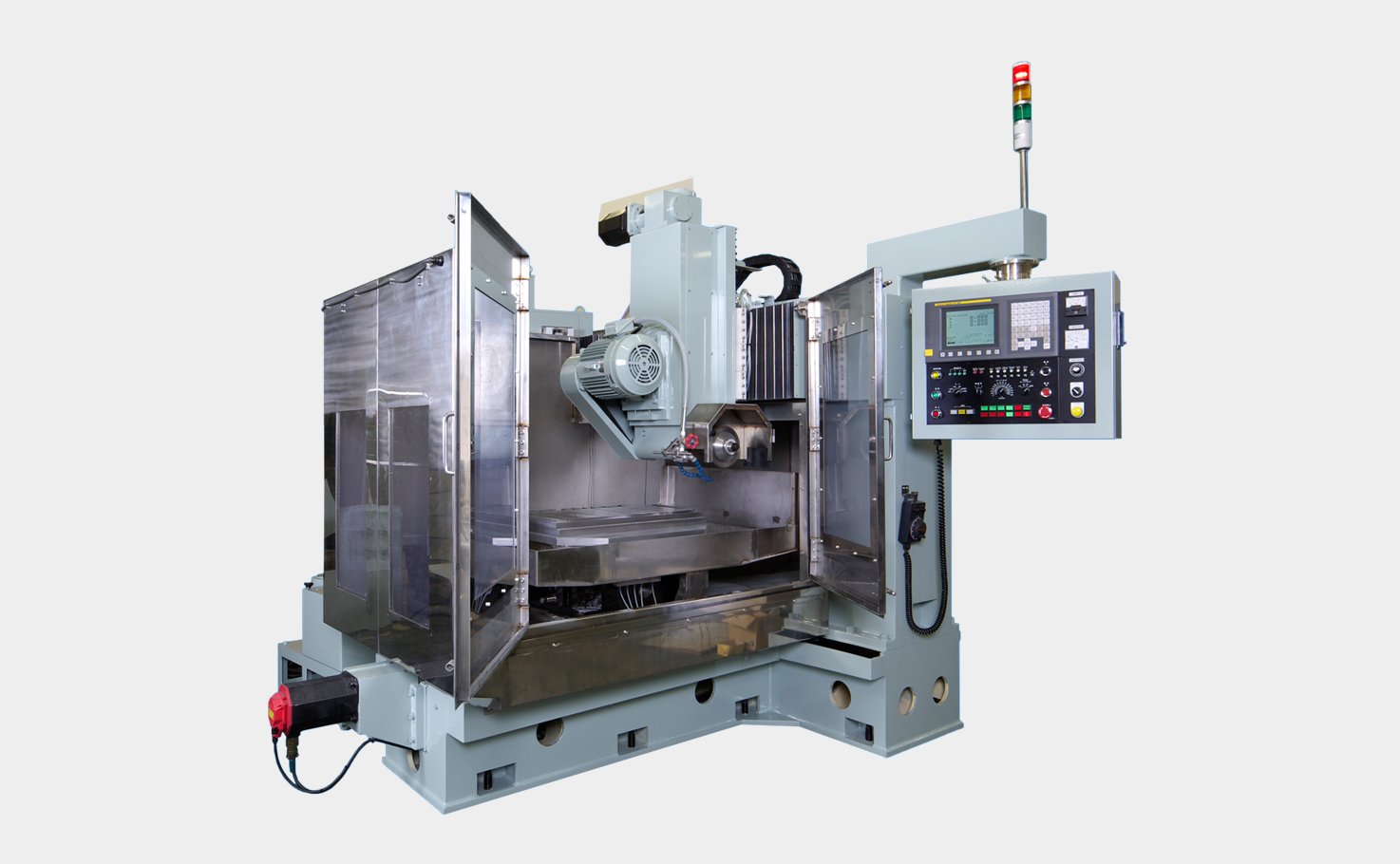

Circular table type slicing machine(with the 4 Axes NC）
Specification
| mm | X axis （L/R table Feed） |
Y axis （F/B Wheel Head Feed） |
Z axis （U/D Wheel Head Feed） |
|
| Stroke | mm | 650 | 400 | 100 |
| Feeding Speed for Cutting | mm/min | 1～7,500 | 1～6,000 | 1～1,500 |
| Rapid Feeding Speed | mm/min | 7,500 | 6,000 | 1,500 |
| Minimum Movement Unit | mm | 0.001 | 0.001 | 0.001 |
| Tble Size | mm |  550 |
||
| Wheel Size（O.D.×I.D.） | mm | 125～200×40 |
||
| Revolution of Wheel（variable） | mln-1 | 1,000～7,000 | ||
| Motor Output for Wheel axis | kW | 3.7 | ||
| Foot Space Size | mm | About 2,500×2,200 | ||
| Mass of Basic Unit | kg | About 3,500 | ||
Process
Cutting
Work piece
It is best suited to precise cutting of a thin plate such as ceramic, glass, carbon and wafer boat.
Feature
- This equipment is a gate and circular table type large slicing machine with 4 axis（x. y. z. and θ axis）NC device. It is used in various fields such as cutting a substrate.。
